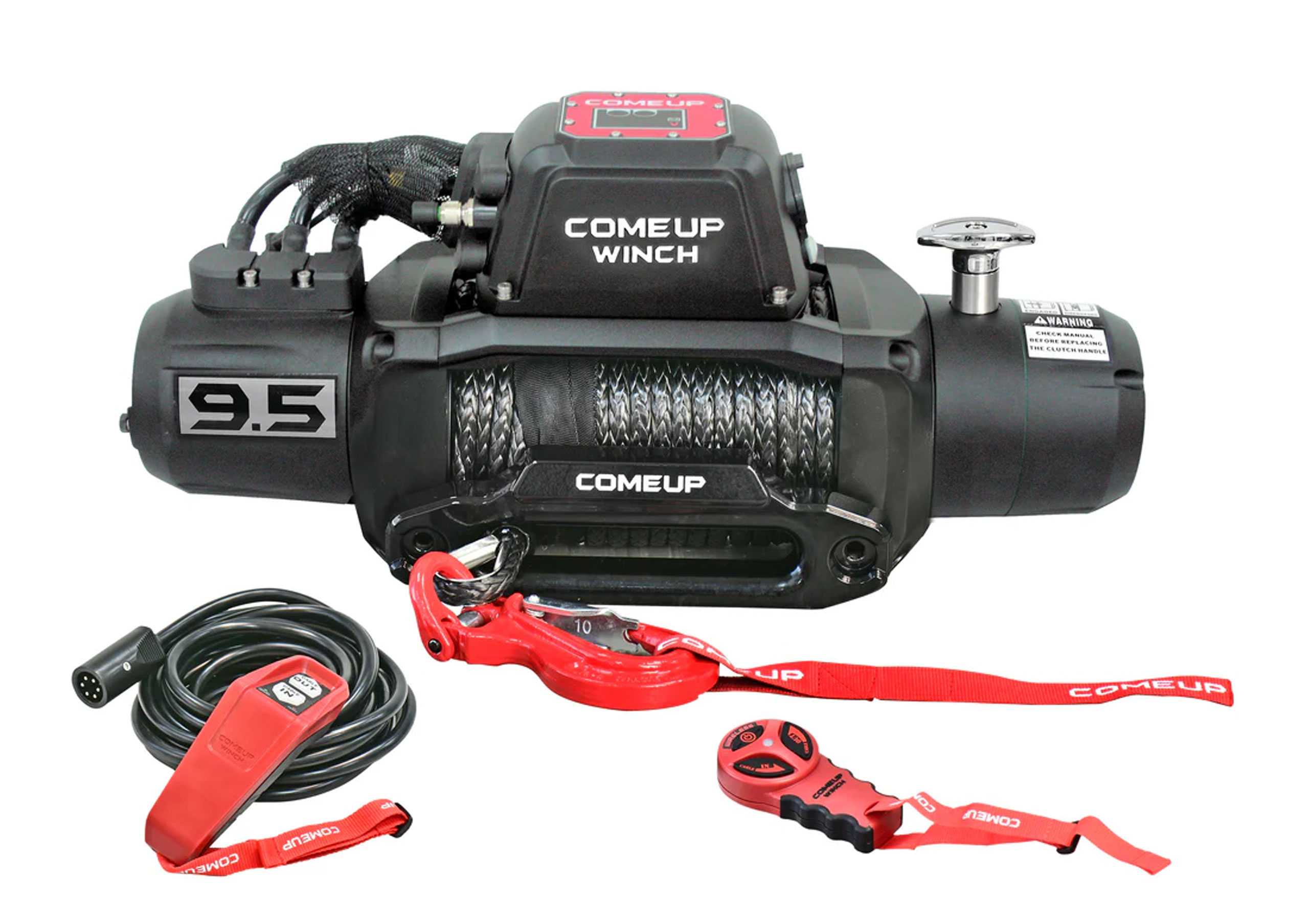

ComeUp Winch – SOLO 9.5rs
$ 94.33
Line Speed and Amp. Draw (1st layer of wire rope on the drum): Line Pull (kg / lb) Line Speed (mpm / fpm) Amp Draw (A) No Load 14.8 / 48.6 60 907 / 2,000 4.8 / 15.7 115 1,814 / 4,000 3.6 / 11.8 210 2,722 / 6,000 2.8 / 9.2 245 3,629 / 8,000 2.3 / 7.6 280 4,309 / 9,500 2.2 / 7.2 380 Line Pull and Rope Capacity: Layer of Rope Pull by Layer (kg / lb) Total Rope on the Drum (m / ft) 1st 4,309 / 9,500 5.1 / 16.7 2nd 3,472 / 7,655 11.7 / 38.4 3rd 2,908 / 6,410 19.7 / 64.6 4th 2,501 / 5,514 30.5 / 100 Specifications: Rated Line Pull 9,500 lbs (4,309 kg) single line Motor 5.0 hp / 3,730 w 12V Series Wound Gear Ratio 3-Stage Planetary 159:1 Clutch (freespooling) Rotating Ring Gear Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure) Winch Construction Aluminum Die Cast Housing with Steel Drum Drum Size 2.5″ x 9″ (63.5 x 228 mm) Control Digital two-way wireless remote control and water-proof wired remote control with thermometric LED indicator Rope Type Synthetic Rope Rope Size 3/8″ x 100′ (10 mm x 30.5 m) Mounting Bolt Pattern 10″ x 4.5″ (254 x 114 mm) Winch Weight 76.9 lb Gross Weigh 91.5 lb Dimensions 26.9″ x 8.2″ x 16.9″ (682 x 209 x 430 mm)
Related products
-
Hi-Lift Jack Base Plate $ 71.74
-
-

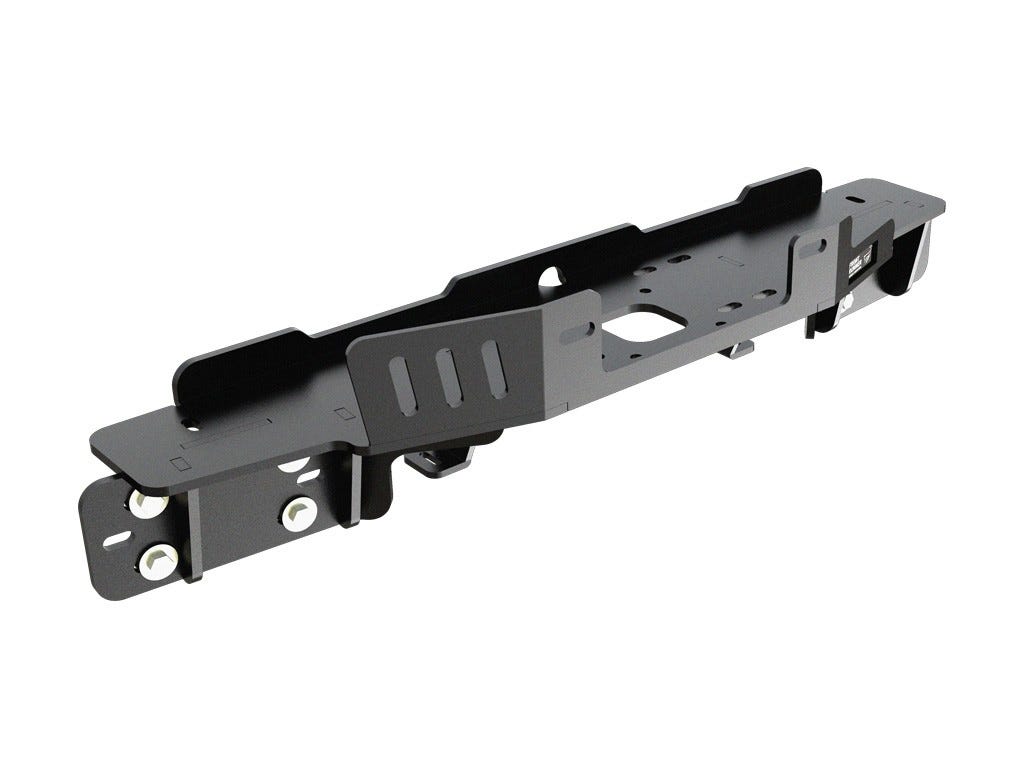

Recovery Device Mounting Kit $ 94.12
-

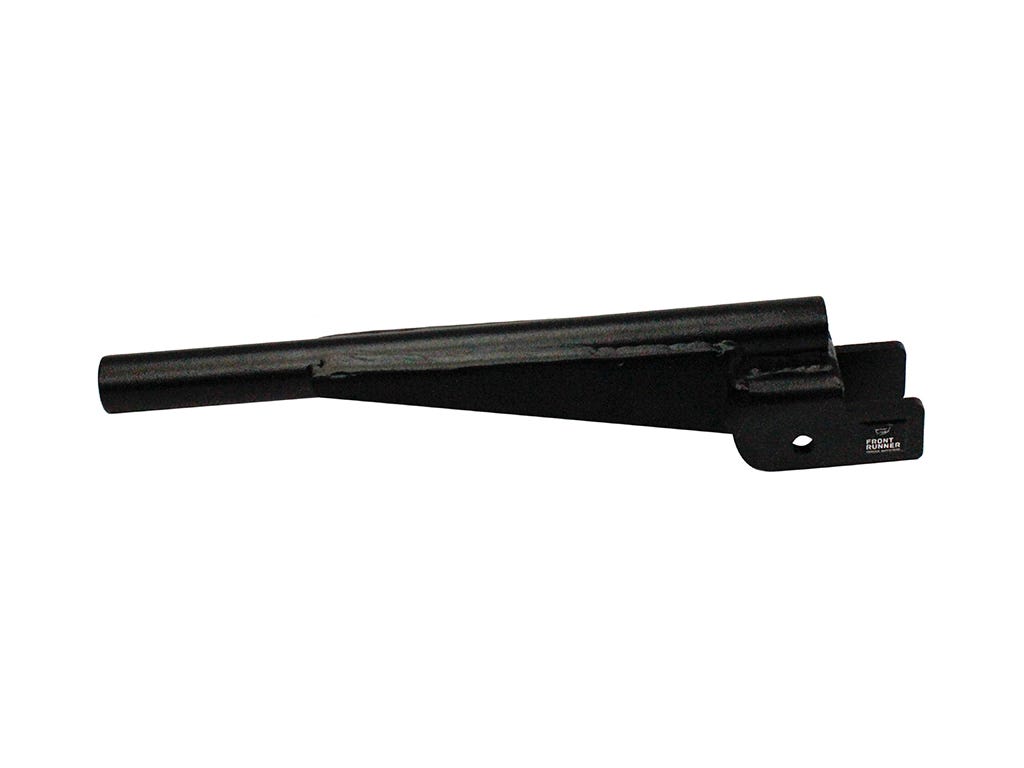

Hi-Lift Jack Jacking Points $ 62.55
