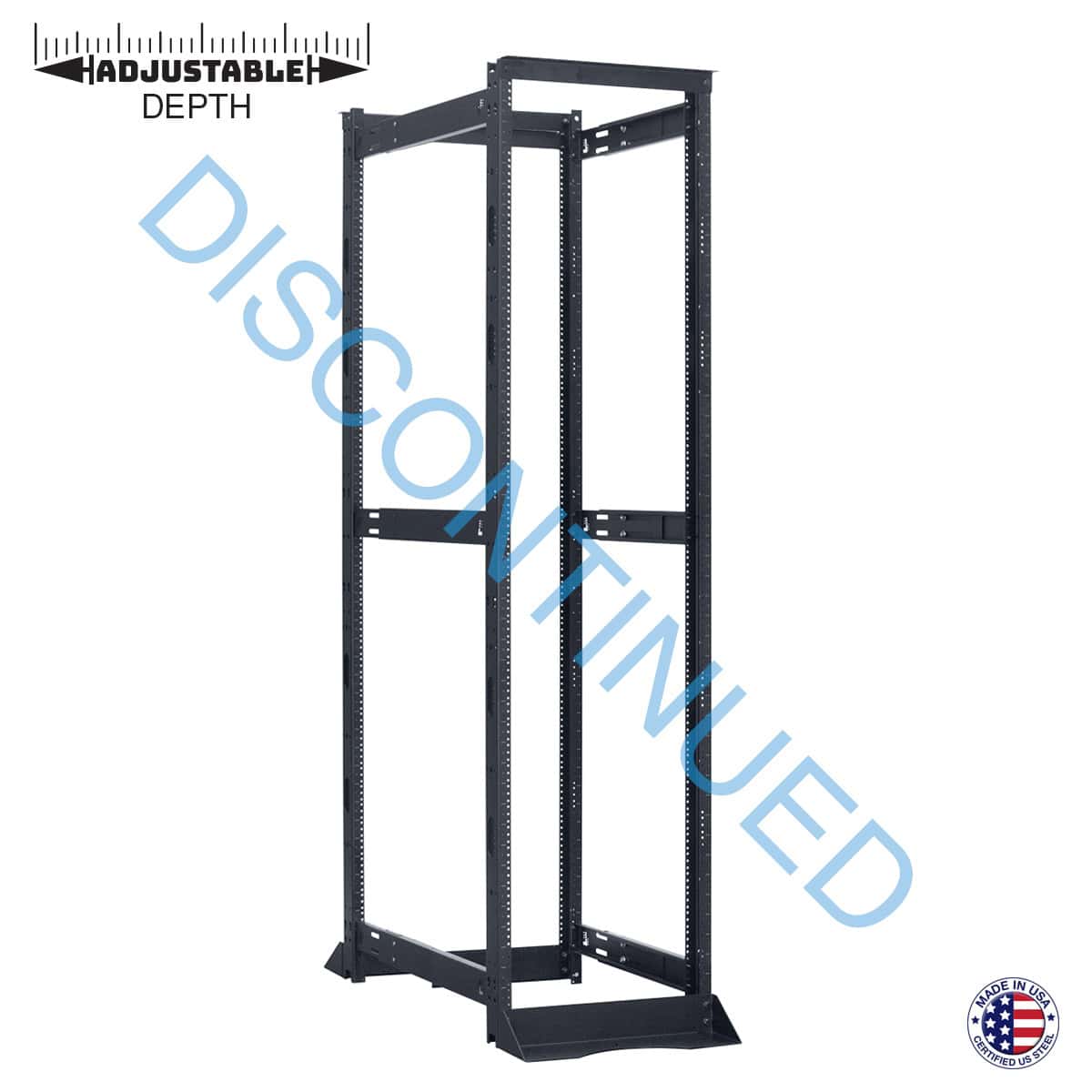

LGNR-4032 - DISCONTINUED

Configurable top has 10U opening for 19 in. panels. Solid closure panels included. Open sides and front (optional door) Recessed solid steel rear door includes handle and keyed lock Two pair fully adjustable rails tapped 10-32 with printed RU scale Cable Management:  Multiple lacing points, holes, knockout panels Pilot Point screws with captive washers Grounding stud Threaded inserts (for optional leg levelers) Beveled corners Black wrinkle textured powder epoxy finish Rack Space:  40U Height:  76.125 in. Width:  22.00 in. Depth:  32.00 in. (29.34 usable) Load capacity 3150 lbs. Spec Sheet:  1304-LGNR4032 CAD drawings:  LGNR-4032 Revit Models:  LGNR Series Install:  20055-FloorRack TAA Compliant EIA/TIA Compliant UL 2416 Listed Certified U.S. Steel Made in U.S.A. (BAA) The EIA/TIA compliant, UL Listed gangable equipment rack shall be Lowell Model No. LGNR-4032, which shall measure 22″W x 32″D x 76.125″H (40U). The rack shall be listed to UL 2416 in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced at loadbearing junctions and have a black wrinkle textured powder epoxy finish. The rack shall include a solid steel rear door with key lock and two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature removable knockout panels and combination knockouts (1/2″, 3/4″, 1″, 1-1/2″) for conduit wiring, and BNC knockouts for UHF/VHF antenna. The top shall have integral rails with mounting holes tapped 10-32 to accept 19″W solid panels included as shipping stiffeners or optional accessories. The base shall include a grounding stud and provisions to accept leg levelers (optional) or anchor bolts (by others). Thermal management Cable management Front door:  LFD-40 (solid) | LFD-40P (plexiglass) | LFD-40FV (full vent) Side panels:  SDP-4032 Rack rails (40U):  RRN-40 Mobile base:  LMNB-32 Power Strips: Hardwired | Cord (Attached), | Cord (Detachable) 19” Power Panels: Hardwired | Cord (Attached) | Cord (Detachable)
