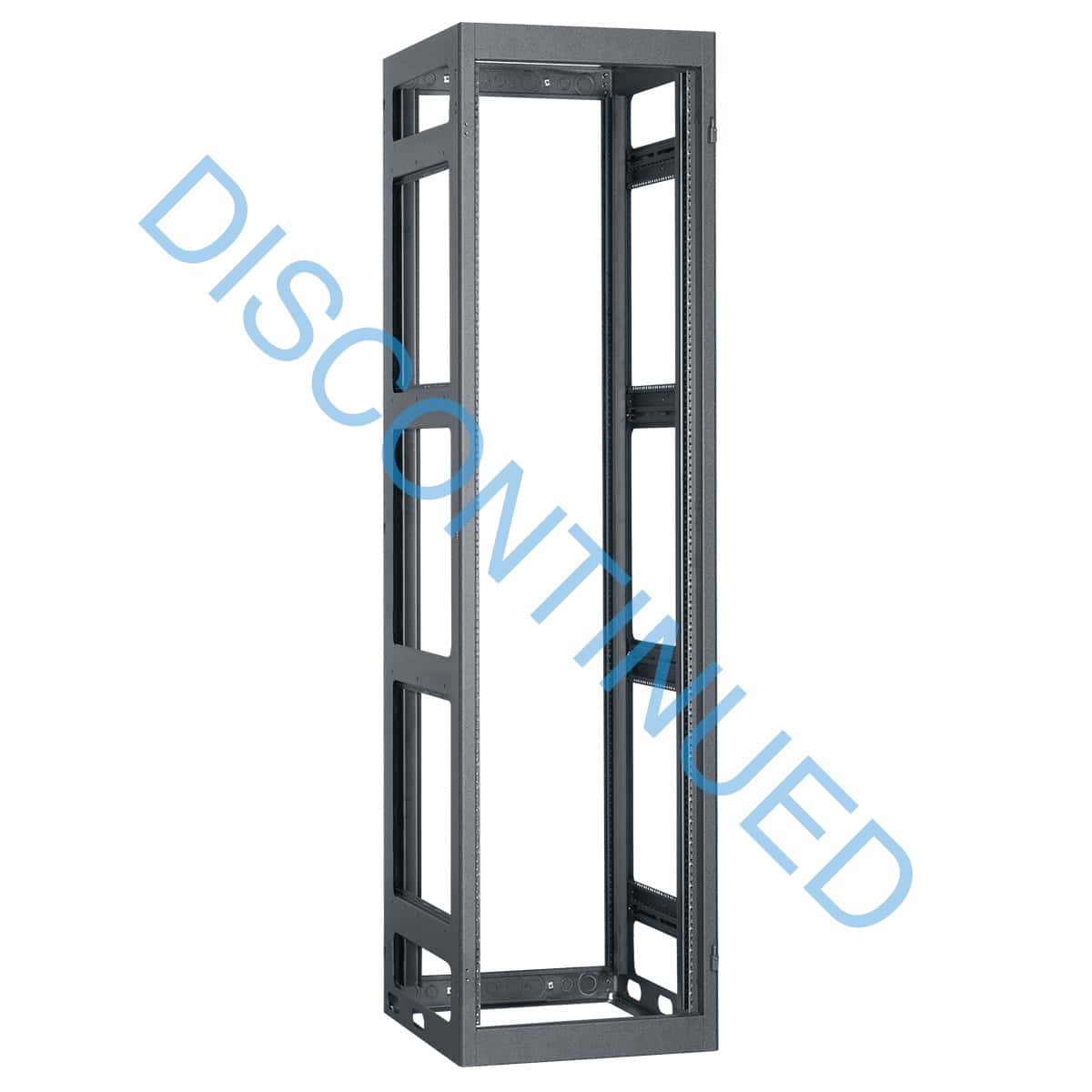

LGNR-4432-LRD - DISCONTINUED

Configurable top has 15U opening for 19 in. panels. Open sides and front (optional door) Two-pair fully adjustable rails tapped 10-32 with printed RU scale Cable Management: multiple lacing points, holes, knockout panels Pilot Point screws with captive washers Grounding stud Threaded inserts (for optional leg levelers) Beveled corners Black wrinkle powder epoxy finish Rack Space:  44U Height:  83.125 in. Width:  22.00 in. Depth:  32.00 in. (29.34 usable) Load Capacity: 3150 lbs. Spec Sheet:  1305-LGNR4432 CAD drawings:  LGNR-4432 Revit Models:  LGNR Series Install:  20055-FloorRack TAA compliant BAA compliant EIA/TIA compliant UL 2416 Listed USA-certified steel Made in USA The EIA/TIA-compliant gangable equipment rack shall be Lowell Model No. LGNR-4432, which shall measure 22″W x 32″D x 83.125″H (44U). Construction shall be fully-welded 16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced at loadbearing junctions. The rack shall include a solid steel rear door with key lock and two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature removable knockout panels and combination knockouts (1/2″, 3/4″, 1″, 1-1/2″) for conduit wiring, and BNC knockouts for UHF/VHF antenna. The top shall feature a 15U opening that includes rails with mounting holes tapped 10-32 to accept 19″W solid panels or optional accessories. The base shall include a grounding stud and provisions to accept leg levelers (optional) or anchor bolts (by others). The rack shall be manufactured in the USA using USA-certified steel and have a black-textured powder-coat finish. It shall be UL 2416 Listed, Trade Agreement Act (TAA) compliant, and Buy American Act (BAA) compliant. Thermal management Cable management Front door:  LFD-44 (solid) | LFD-44P (plexiglass) | LFD-44FV (full vent) Rear door w/cable brush panel: RDC-44 Side panels:  SDP-4432 Rack rails (44U):  RRN-44 Mobile base:  LMNB-32 Power Strips: Hardwired | Cord (Attached), | Cord (Detachable) 19” Power Panels: Hardwired | Cord (Attached) | Cord (Detachable)
