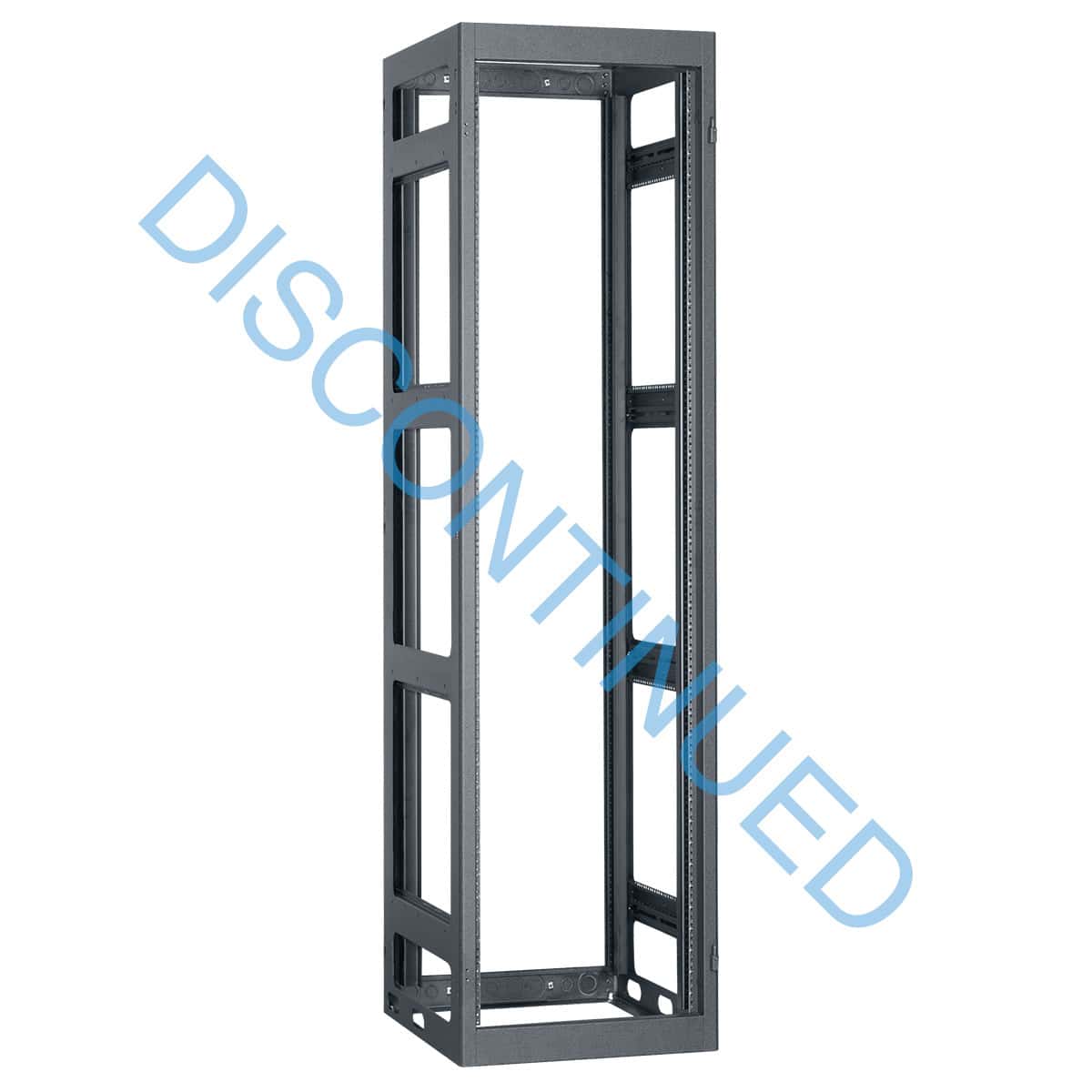

LGNR-4436-LRD - DISCONTINUED

Configurable top has 17U opening for 19 in. panels Open sides and front (optional door) Two-pair fully adjustable rails tapped 10-32 (printed RU scale) Cable Management: multiple lacing points, holes, knockout panels Pilot point screws with captive washers Grounding stud Threaded inserts (for optional leg levelers) Beveled corners Black-textured powder-coat finish Rack Space:  44U Height:  83.125 in. Width:  22.00 in. Depth:  36.00 in. (33.34 usable) Load Capacity: 3150 lbs. Spec Sheet:  1306-LGNR4436 CAD drawings:  LGNR-4436 Revit Models:  LGNR Series Install:  20055-FloorRack TAA compliant BAA compliant EIA/TIA compliant UL 2416 Listed USA-certified steel Made in USA The EIA/TIA-compliant, gangable equipment rack shall be Lowell Model LGNR-4436, which shall measure 22″W x 36″D x 83.125″H (44U). Construction shall be fully-welded 16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced at loadbearing junctions. The rack shall include two-pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature combination knockouts (1/2″-3/4″, 1/2″-1″, 3/4″-1″, 1″-1-1/2″ and 1″-2″ KOs) for conduit wiring, and BNC knockouts for UHF/VHF antenna. The top shall have integral rails with mounting holes tapped 10-32 to accept 19″W solid panels optional accessories. The base shall include a grounding stud and provisions to accept leg levelers (optional) or anchor bolts (by others). The rack shall be manufactured in the USA using USA-certified steel and have a black-textured powder-coat finish. It shall be UL 2416 Listed, Trade Agreement Act (TAA) compliant, and Buy American Act (BAA) compliant. Thermal management Cable management Front door:  LFD-44 (solid) | LFD-44P (plexiglass) | LFD-44FV (full vent) Rear door w/cable brush panel: RDC-44 Side panels:  SDP-4436 Rack rails:  RRN-44 (44U) Base:  LMNB-36 (36″D mobile) Power Strips: Hardwired | Cord (Attached), | Cord (Detachable) 19” Power Panels: Hardwired | Cord (Attached) | Cord (Detachable)
